Construction & curtain-wall applications
Building scaffold stillage
Welded frames, fleet interfaces and forklift access.
View scaffold galleryCUSTOM STILLAGES & TRANSPORT RACKS
Steel stillages.
Built to your
specifications.
We are a custom manufacturer in China with experience producing steel stillages, transport racks and tanks. Typical orders range from 20 to 100 units, with door-to-door shipping available. We serve customers across North America and Europe.
BUILT AROUND YOUR BUSINESS
Equipment brands · Packaging partners · Industrial buyers · Builders
LET’S DEFINE YOUR PROJECT
Tell us what you need.
Your drawing or a new design. Samples and repeat production welcome.
Sending your inquiry…
Your project brief
Send inquiry uploads your selected file with the project details. If you use the email alternative, attach the file manually.
FIND YOUR APPLICATION
Built around
what you move.
Start with the product closest to yours. Explore our scaffold, gas-cylinder and waste-oil builds, or discuss a rack around your product.
Transport & storage racks
Gas cylinder rack stillage
Cylinder retention, galvanized surfaces and fabrication details.
View cylinder gallery
Custom steel containers
Waste oil tank stillage
Container construction, forklift guides and leak-test details.
View waste-oil galleryWe can also manufacture profile & extrusion transport racks, window & door transport racks, and glass transport racks.
YOUR STARTING POINT
Two ways to start.
One path to production.
Whether the design is proven or still taking shape, agree the scope before the manufacturing starts.
01BUILD TO PRINT
Have an existing
rack design?
Share the current drawing, a sample or photos of your existing rack. We review the build and the interfaces that need to stay compatible.
- Materials, fabrication and finish review
- First article against agreed requirements
- Batch pricing and delivery assumptions
- Repeat orders against the approved revision
Photos can start the review. Production details are confirmed before release.
02DESIGN TO PRODUCTION
Need a rack around
your product?
Start with what it carries and how it moves. We review product support, surface protection, handling, stacking and the return journey.
- Free preliminary feasibility review
- Agreed engineering and prototype scope
- Sample evaluation before batch release
- A defined specification for repeat orders
Detailed design and prototype work are quoted and agreed before work begins.
ORIGINAL CSMFG PRODUCT PHOTOS
Three builds.
A closer look.
Select a thumbnail to see the product, manufacturing and inspection details. Click the main image for a larger view.
CSMFG PROJECT / 01

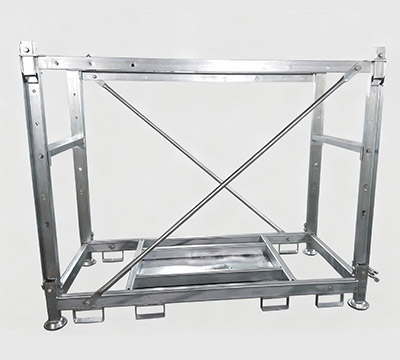

Building scaffold stillage
Construction equipment & curtain-wall handling
A welded steel frame from a previous CSMFG scaffold project. Start with your existing rack or the equipment set it needs to carry.
- Equipment fit
- Loading arrangement, fork access and interfaces with an existing fleet.
- Build requirements
- Drawing revision, materials, surface finish and acceptance criteria.
Reference specifications Dimensions, finish & handling
Reference dimensions only. Final specifications are agreed for each project.
- Overall / empty size
- 2,360 × 1,120 × 1,870 mm assembled; orientation and shipping configuration to confirm.
- Construction & finish
- Welded steel. Finish confirmed to your drawing; zinc-colored finish shown.
- Planning quantities
- 1–5 samples / 20–100 production units as enquiry examples; quantities agreed per project.
- Forklift access
- Fork entry and pocket dimensions matched to your truck.
- Load & stacking
- Payload and stacking limits require approval for your design.
CSMFG PROJECT / 02

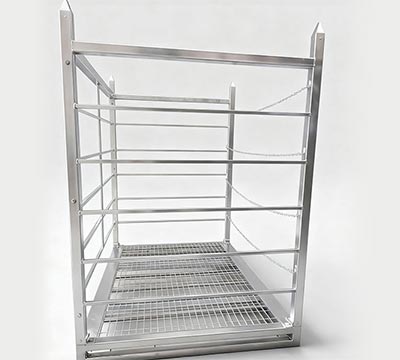

Gas cylinder rack stillage
Cylinder transport & storage
A hot-dip galvanized rack from a previous customer project. See the complete rack, dimensional checks, coating inspection and retaining-chain details.
- Cylinder fit
- Bottle dimensions, loading arrangement and restraint requirements.
- Fabrication review
- Galvanized finish, mesh floor, frame interfaces and intended use.
Reference specifications Dimensions, finish & handling
Reference dimensions only. Final specifications are agreed for each project.
- Overall / empty size
- 1,710 × 2,080 × 1,220 mm assembled; orientation and shipping configuration to confirm.
- Construction & finish
- Welded steel with a hot-dip galvanized finish.
- Planning quantities
- 1–5 samples / 20–100 production units as enquiry examples; quantities agreed per project.
- Forklift access
- Fork entry and pocket dimensions matched to your truck.
- Load & stacking
- Cylinder fit, payload and stacking limits confirmed for your application.
CSMFG PROJECT / 03
Waste oil tank stillage
Fabricated steel containers
A fabricated waste-oil container with side walls and forklift guides. The original project included leak testing; the photos show the internal construction and inspection details.
- Container requirements
- Capacity, openings, handling arrangement and intended use.
- Inspection scope
- Leak-test method, finish and project-specific acceptance requirements.
Reference specifications Dimensions, finish & handling
Reference dimensions only. Final specifications are agreed for each project.
- Overall / empty size
- 1,660 × 1,030 × 1,070 mm assembled; orientation and shipping configuration to confirm.
- Construction & finish
- Welded steel with a painted finish; coating specified for your application.
- Planning quantities
- 1–5 samples / 20–100 production units as enquiry examples; quantities agreed per project.
- Forklift access
- Fork entry and pocket dimensions matched to your truck.
- Load & stacking
- Fluid capacity, leak-test requirements and stacking limits agreed before production.
Photos document previous work. Dimensions, load conditions, containment requirements and acceptance criteria are agreed for each project. The scaffold photos show a scaffold build; curtain-wall panel support and restraint require their own design review.
Reference data and engineering basis
Envelope dimensions: previous CSMFG product page. Fork dimensions are examples of vehicle information to collect (JCB fork examples), not measured pocket dimensions. Published photos do not establish safe working loads or stacking limits; these require an approved drawing, load case and verification (HSE pallet guidance).
BEFORE YOU START
A few practical
questions.
Project details belong in the review.
Here is how we approach the process.
Can we start with a small sample order?
Yes. A sample or pilot order can be the first stage of a larger production program. Share the initial quantity and expected follow-on demand so the project can be scoped appropriately. Quantities and commercial terms are agreed for each project.
Do we need complete CAD drawings?
No. Existing rack photos, sketches, product images and key dimensions can start the conversation. The manufacturing information needed for production is confirmed before the build is released.
Can you match our existing stillages?
We review your drawings, sample or photographs and the interfaces that need to remain compatible. Fit and acceptance requirements are agreed and checked through the first article.
Why are there no standard sizes or load ratings?
Each project is specified around its intended use. Product weight, load distribution, handling and stacking conditions are reviewed before design and validation requirements are agreed. The examples on this page show previous work, not a universal specification.
How are repeat orders and design changes handled?
Repeat orders reference the approved drawing revision and specification. Proposed changes are reviewed and agreed before the next production release. Include the current part number and revision when requesting replenishment.
Can shipping be included in the quotation?
Share the destination and target delivery timing. Packing and shipment options can then be evaluated alongside the product quotation. The quotation states the delivery basis, assumptions and exclusions.
Can we arrange an NDA first?
Yes. Request an NDA before sharing confidential drawings or project details. You can start with a general description of the application.
